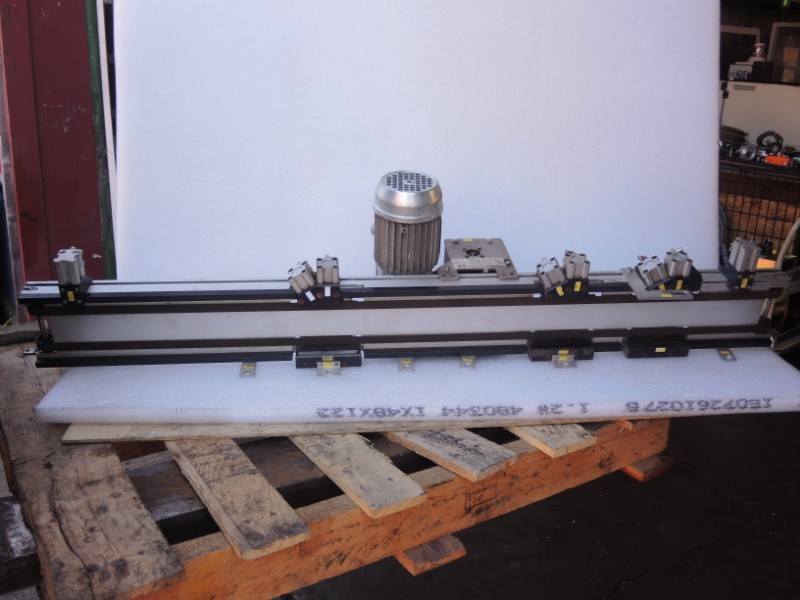

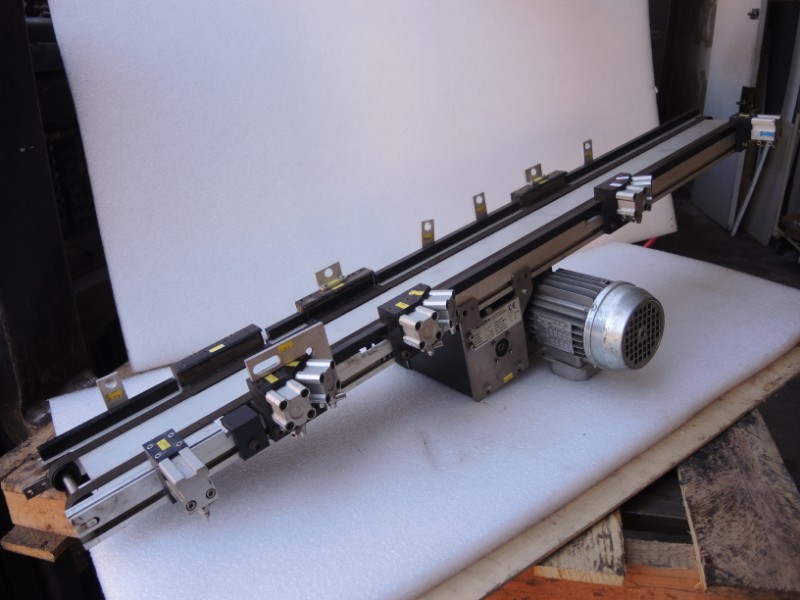

Swiss built electric belt conveyor, 51” x 3.6”, 3-phase motor.
-
Transport distance: 51"
-
Maximum track width: 116 mm = 4.5"
-
Conveying speed: 0.81 fps / 0.98 fps for 50 Hz / 60 Hz environs
-

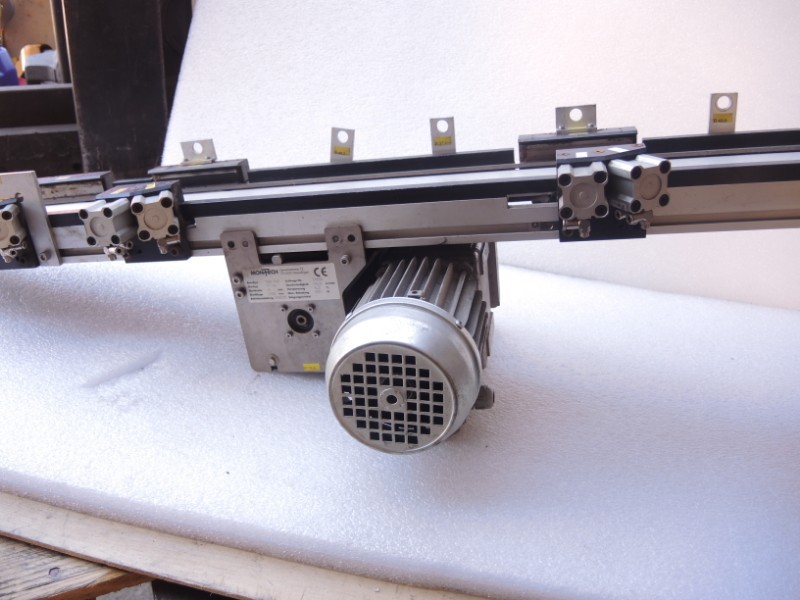

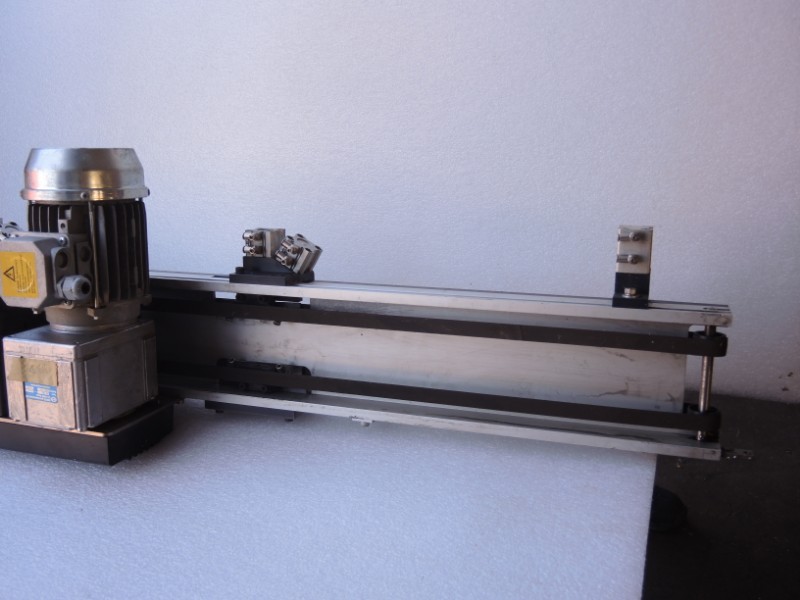

Complete with Swiss built gear motor built by Indur Antriebstechnik, type US-362
-
Motor specs: 200/220/240/254/280 VAC in D-configuration, 340/380/415/440/480 VAC in Y-configuration
-
Motor rating: 01.2 KW / 0.14 KW for 50 Hz / 60 Hz supply.
-

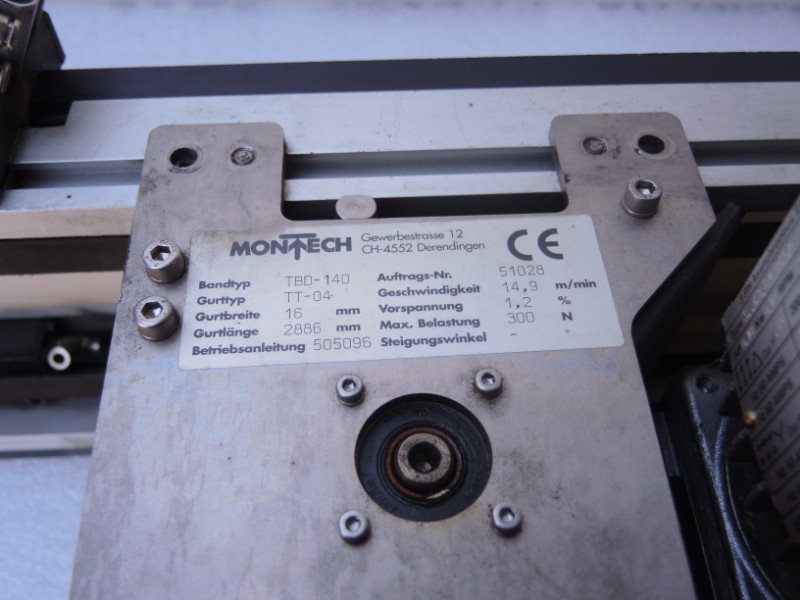

Belt details: 2886 mm long, 16 mm (split belt system)
-
Complete with partial guide rail
-
Complete with 7 holders for sensors to detect articles along the track
-
Distance between rails: 116 mm = over 4.5"
-
Complete with 5 pneumatic stopper (driven by Festo cylinders)
-
Net weight: 56 lbs
-
No external frame included
-
Made in Switzerland
