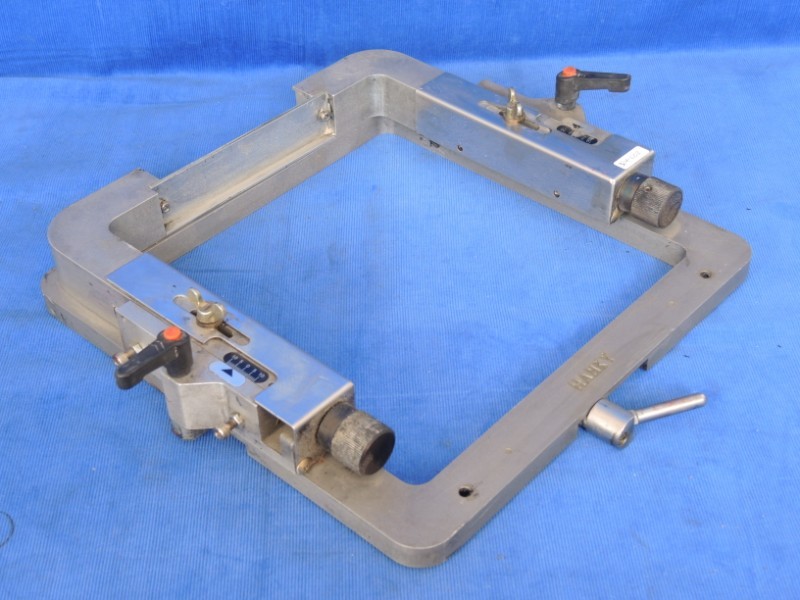

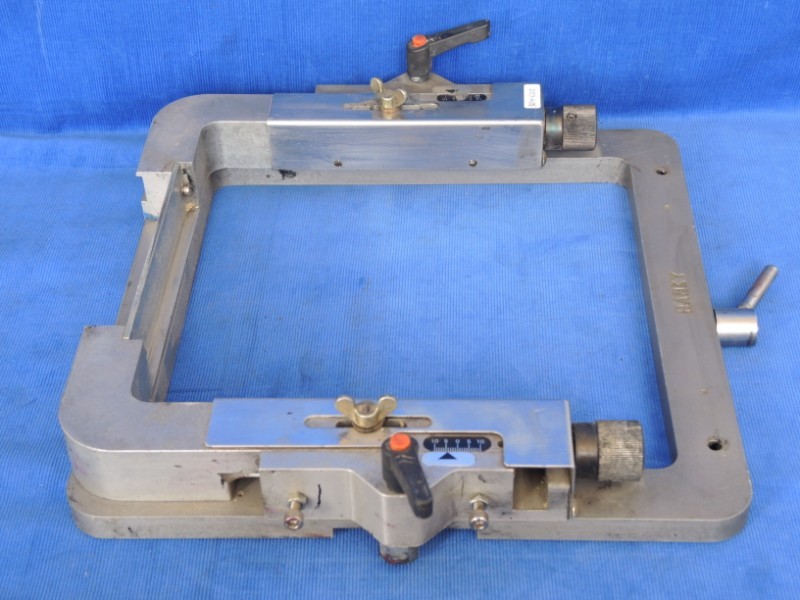

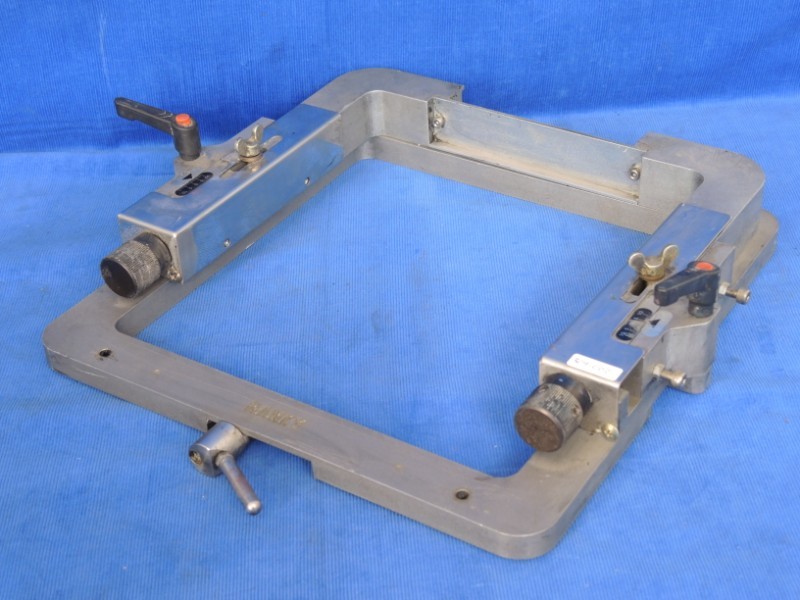

Screen Print Mother Frame, x-alpha adjust

Screen print mother frame

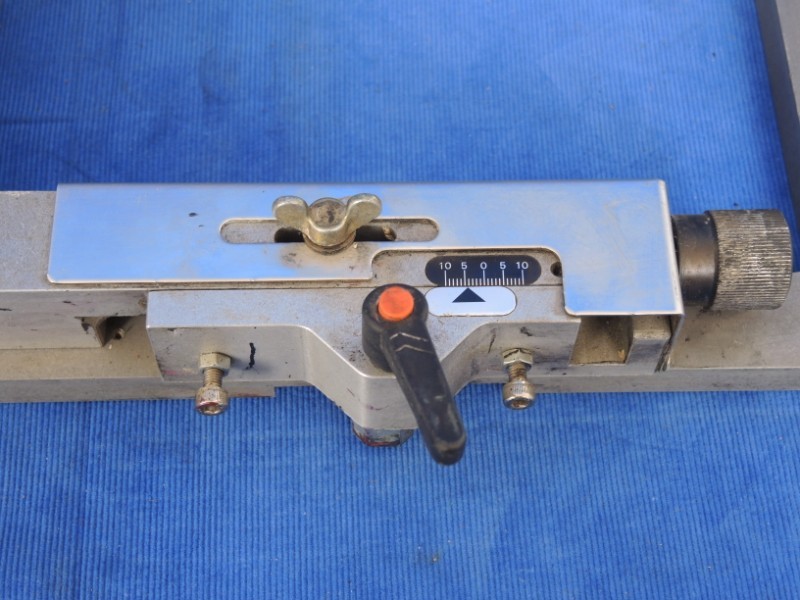

• With x (forward/backward) and angular adjustment
• Sideways adjustment must come from print head
• Mounts to print head with 4 screws.
• Clear opening: 250 mm x 250 mm
• Requires screen frames with 259 mm x 259 mm net size and rounded corners

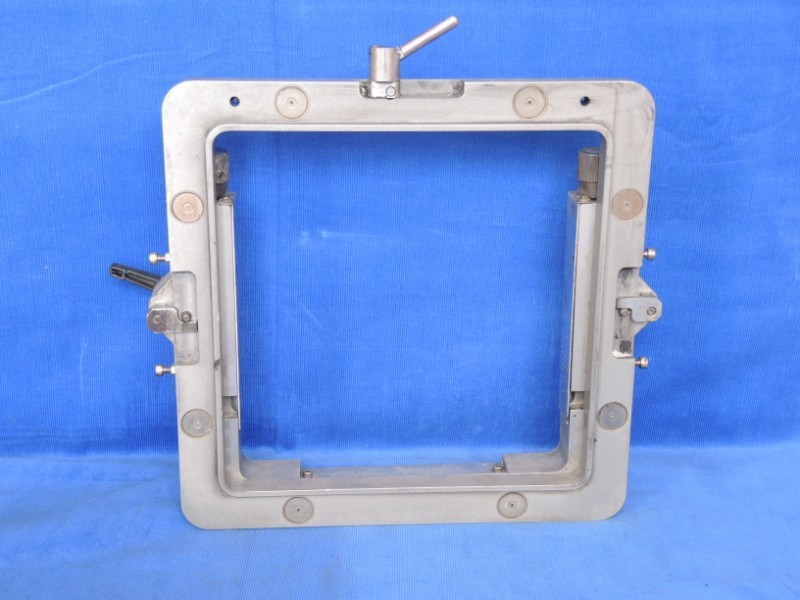

• Printing frames are held by lip on lower side of mother fame and a total of 8 magnets (2 on each side)
• Printing frames must be made of magnetic steel
• Complete with excentric rotary lever to break magnetic hold for removal of screen frames
• Year of manufacture: between 1998 and 2003
• Part was inspected and cleaned
• Net weight: 8 lb
• Made in Taiwan
