Timing pulley 48 T, 60 mm W. 40 mm bore

Timing pulley 48 T, 60 mm W. 40 mm bore
Timing pulley 48 T, 60 mm W. 40 mm bore Timing pulley 48 T, 60 mm W. 40 mm bore Timing pulley 48 T, 60 mm W. 40 mm bore Timing pulley 48 T, 60 mm W. 40 mm bore Timing pulley 48 T, 60 mm W. 40 mm bore Timing pulley 48 T, 60 mm W. 40 mm bore
Part Number:HOV1-020-0022

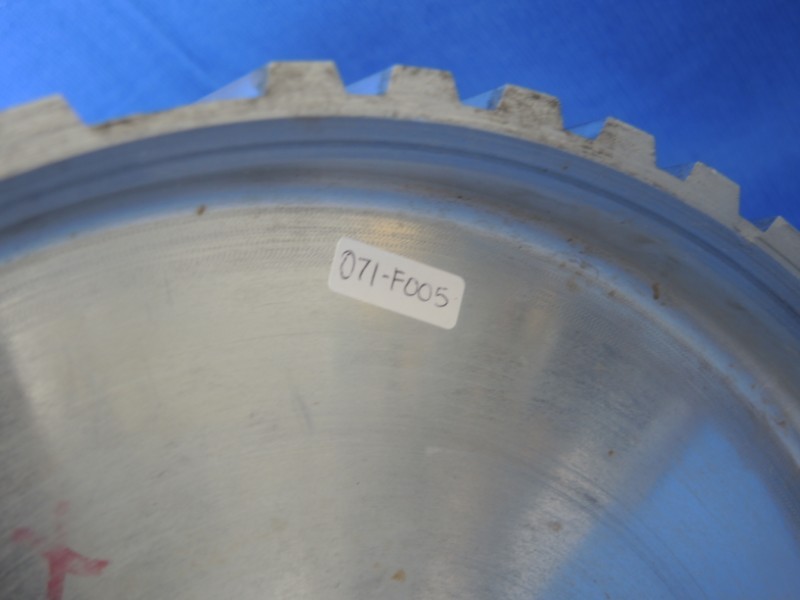

Item Number:US-071-F005
Condition:Used
Location:Fitchburg, MA, USA
Weight:10.50 lb
In Stock:2
Price
$68.50
Add to Wish List  Add to Compare
Add to Cart
Qty:

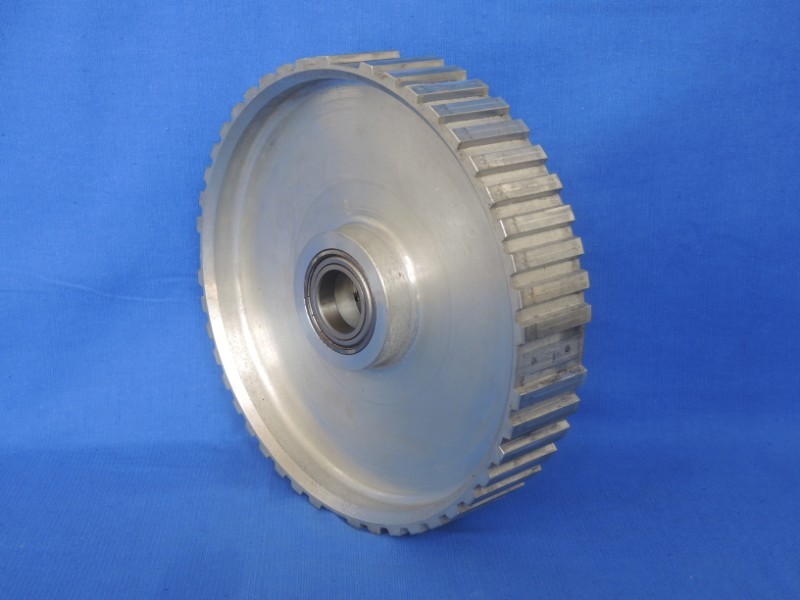

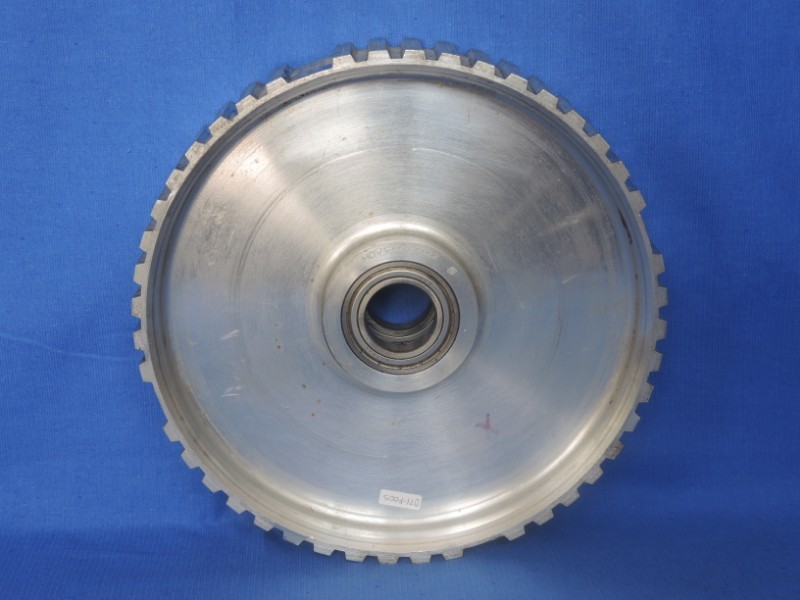

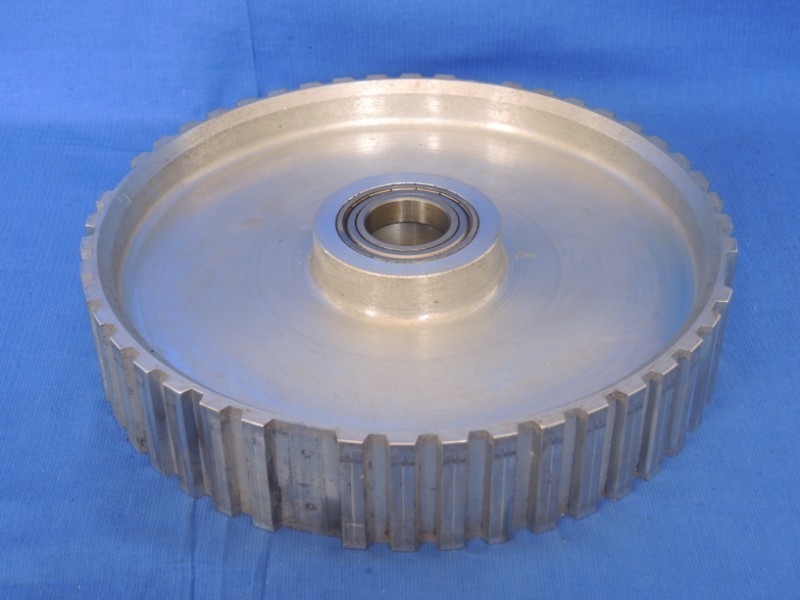

Timing Pulley - metric standard

  • Teeth: 48 (actual tooth count is 44 as there is a 1-tooth gap every 90 degrees
  • Pitch: 20 mm
  • Bore: 40 mm (measured 39.8 mm)15 mm + key slot

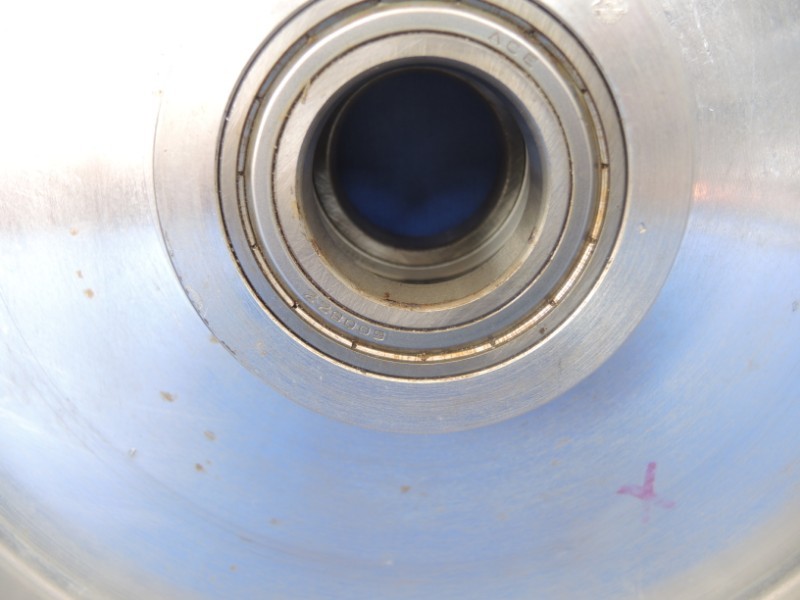

  • ACE 6008 ZZ bearings ( pieces) in hub
  • OD for belt: 303 mm
  • Width for belt: 60 mm
  • Width over all: 60 mm
  • Material: Aluminum

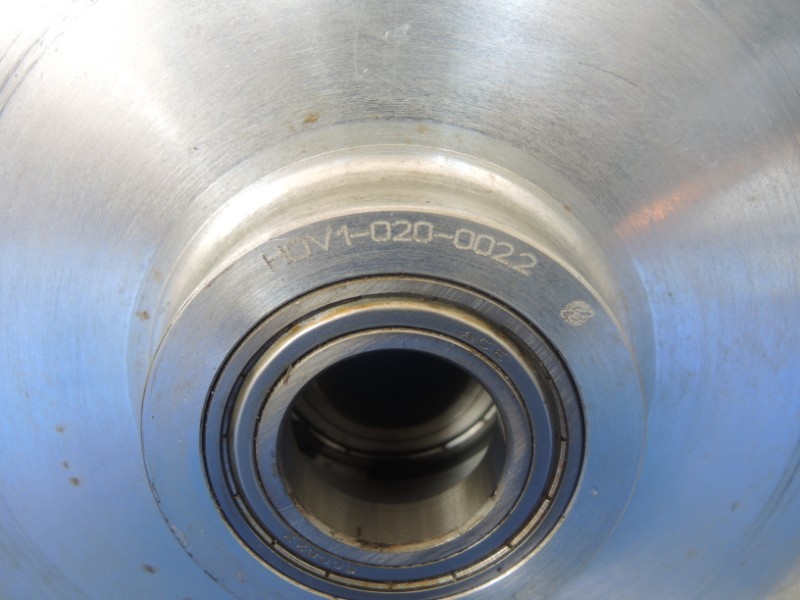

  • Pulley is marked as HOV1-020-0022
  • Previously used in high speed packaging machine manufactured by Heino Ilsemann in Germany
  • Net weight: 8.85 lb
  • Made in Germany
  •

Pulley was inspected, cleaned and is in good usable condition.
