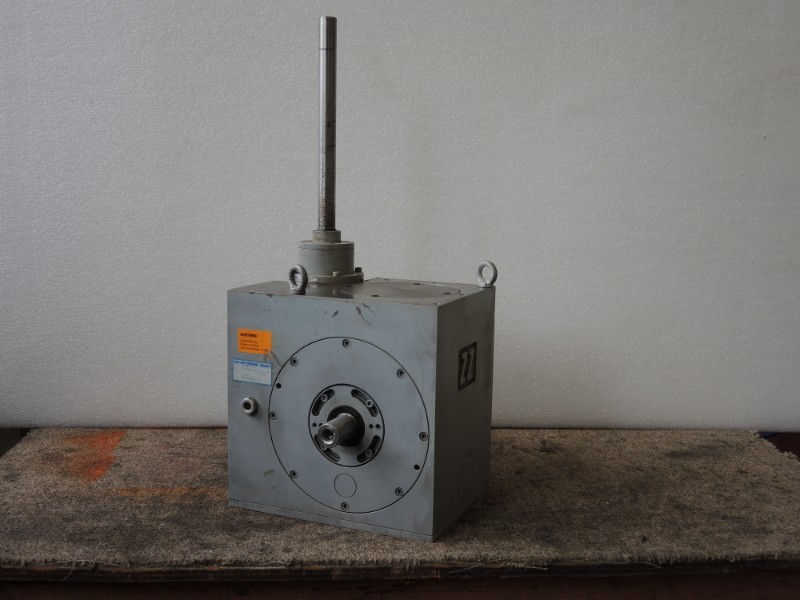

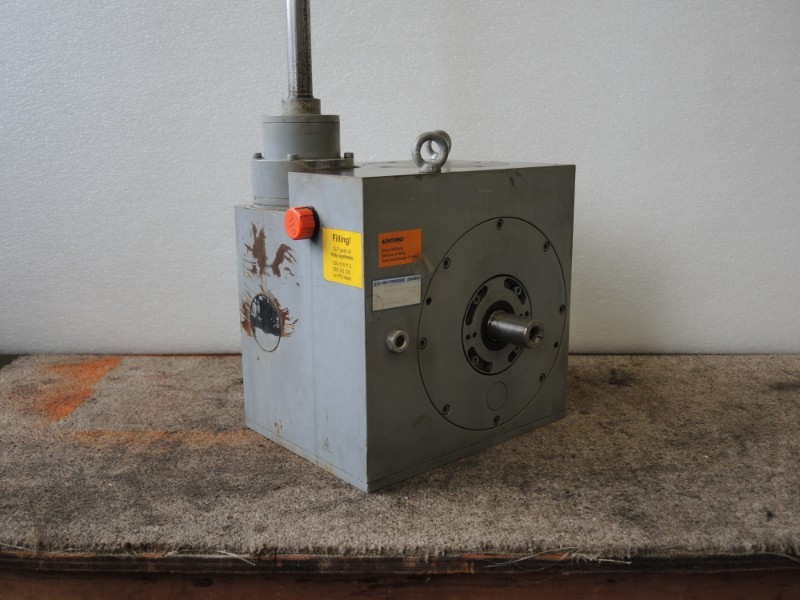

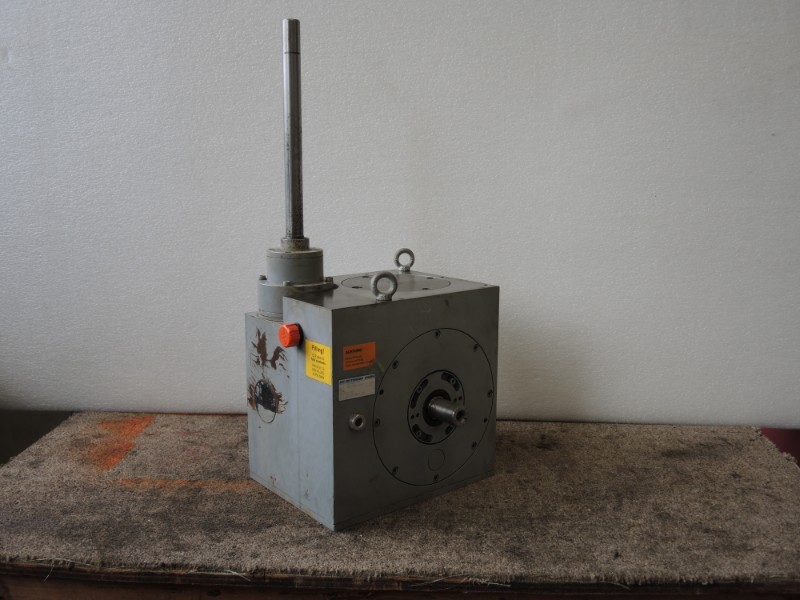

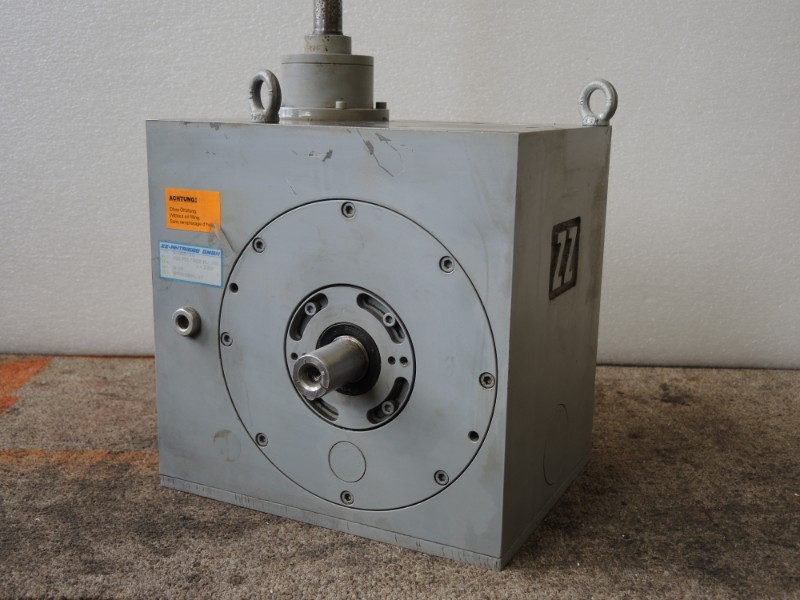

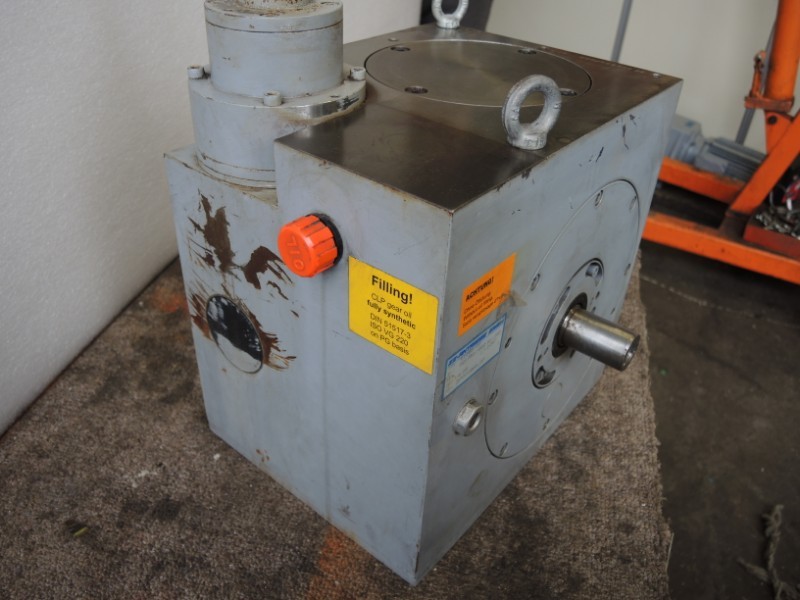

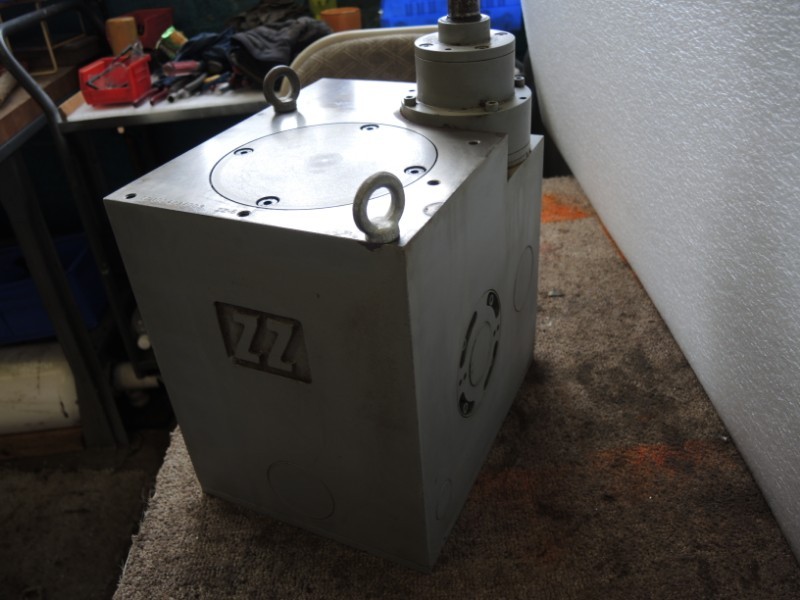

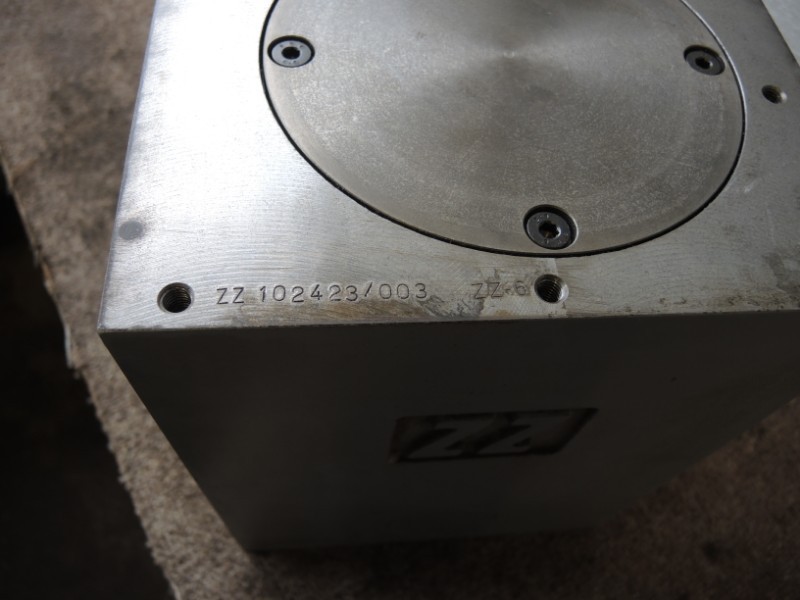

ZZ X1085-10 Gear Indexer 180° w/ 25mm Lift

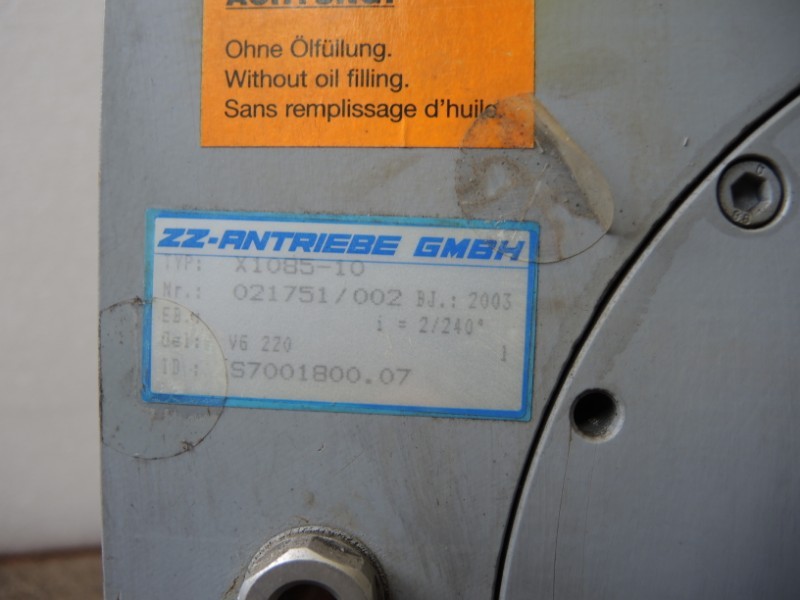

Gear indexer type X1085-10

• Manufactured by ZZ Antriebstechnik GmbH in Karlsruhe, Germany
• Unit was driven with large diameter timing belt.
• Sequence of motions:

1. Shaft rises 25 mm
2. Shaft rotates 180 degrees
3. Shaft lowers 25 mm
4. Shaft rises 25 mm
5. Shaft rotates 180 degree
6. All shaft rotation are in the same direction, true rotation, not a forward/backward twist movement. t
7. next 270 degrees produce zero movement at front shaft
8. It takes 3 full rotations of through shaft for 1 full rotation of front shaft

• Input shaft diameter: 30 mm
• Top shaft (riser) diameter: 25 mm
• Recovered from Ilsemann TCD3 machine
• Year of manufacture: 2003/2004
• Net weight: 185 lbs
• Made in Germany.
