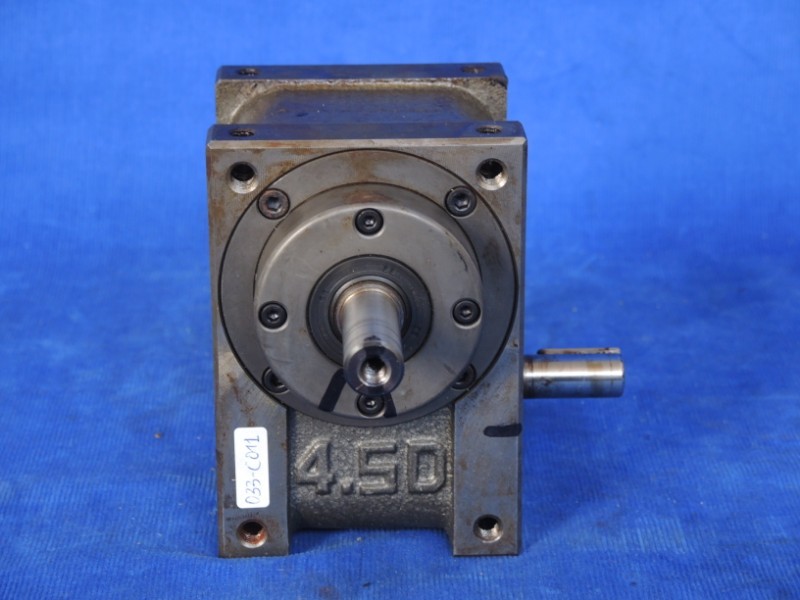

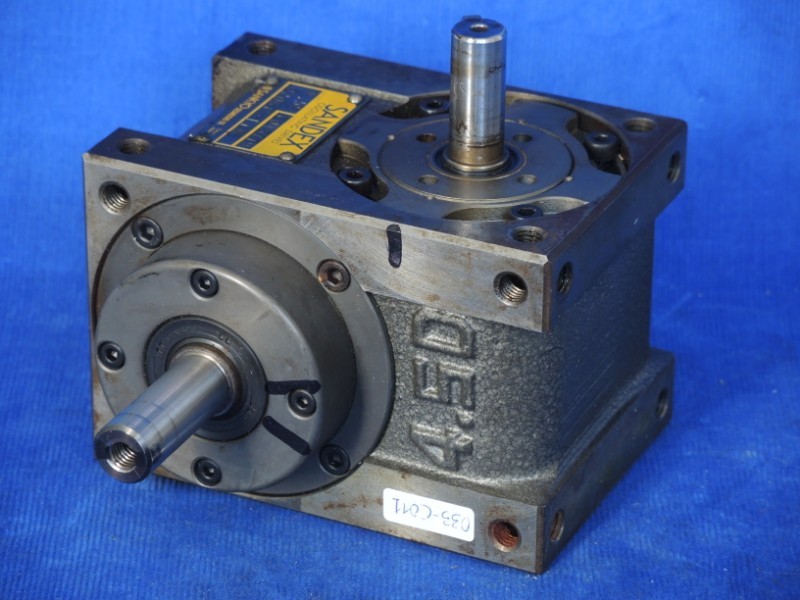

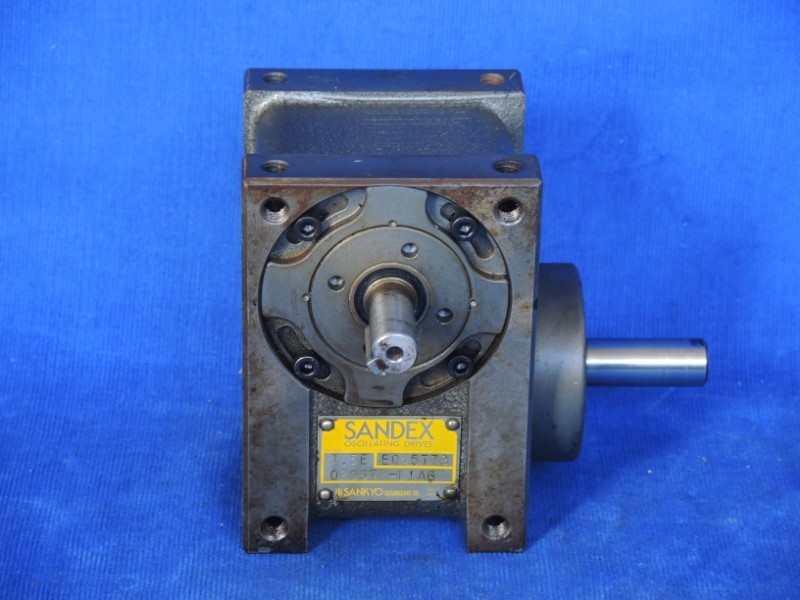

Sandex 4.5E 45-degree oscillator

Mechanical Indexer / gearbox

• 45 degree oscillator (top shaft oscillates)
• Type: 02067R-L1A6
• Dimensions (excluding shafts are 90 mm x 110 mm x 130 mm)
• Shaft diameter: 16 mm top shaft.  Top shaft
• Shaft diameter: 14 mm side shaft. Side shaft has key slot for motor attachment or timing pulley
• Sequence of motions:

1. Motor shaft turns 90 degrees - top shaft turns 45 degrees
2. Motor shaft turns next 90 degrees - top shaft oscillates back 90 degrees
3. Motor shaft turns next 180 degrees - top shaft sits idle

• Manufactured by Sankyo Seisakusho

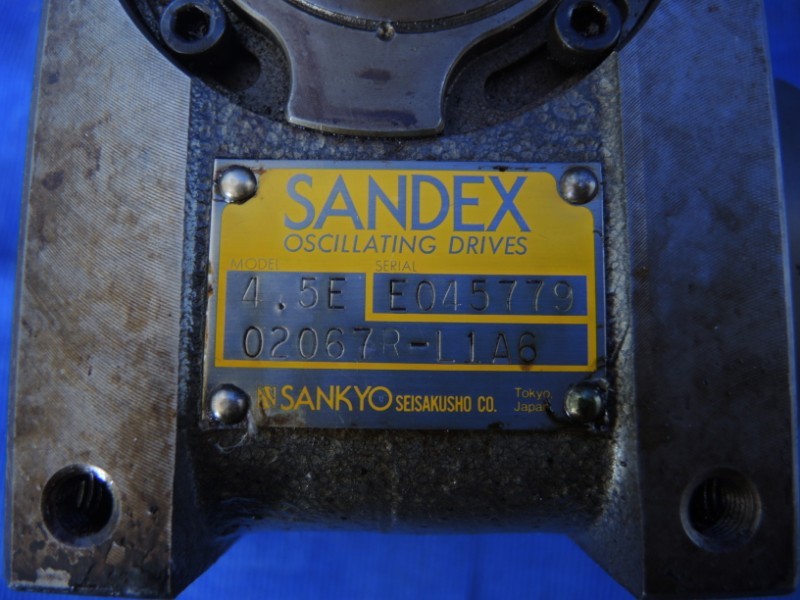

• Serial number: E045779
• Made in Japan
